Pixel Pitch: P1.5mm, P1.9mm, P2.5mm, P2.6mm, P2.9mm, P3.9mm
XR-CORNER
SERIES
Additional Corner Cabinets for XR Series

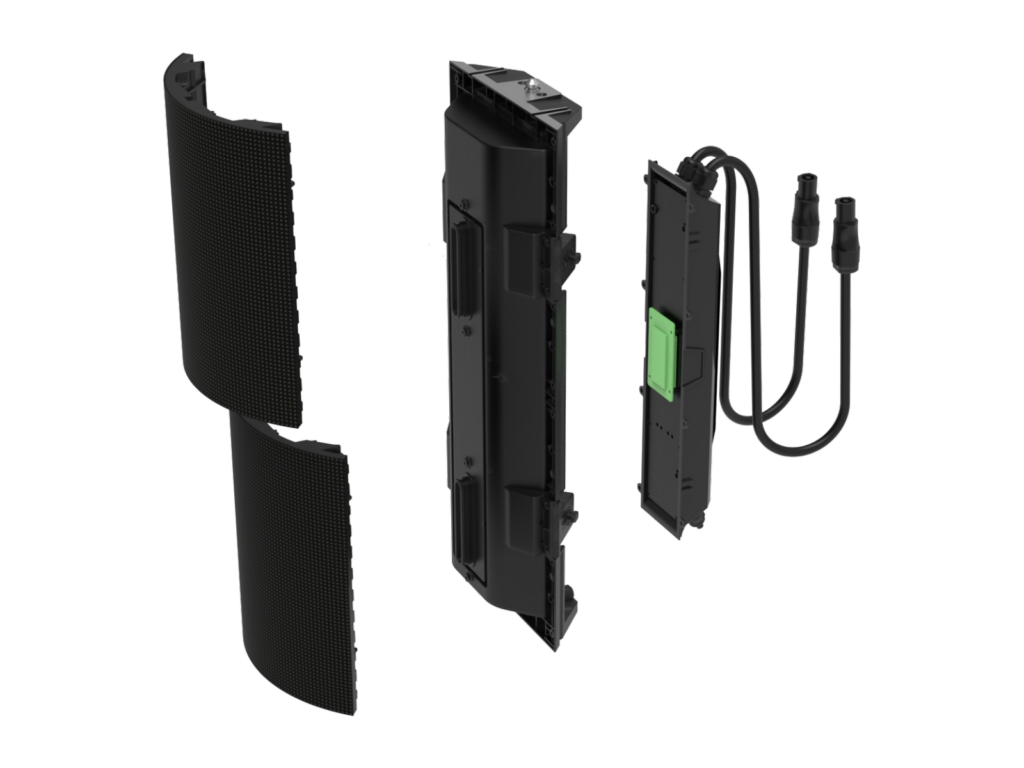

MODULAR DESIGN
FRONT MAINTENANCE
—
Four-Cabinet Joint One-Cylinder
SPECIFICATIONS
| Model No. | P2.976 | P3.91 | P1.56 | P1.953 | P2.5 | P2.604 | |
|---|---|---|---|---|---|---|---|
| Applications | Outdoor | Outdoor | Indoor | Indoor | Indoor | Indoor | |
| LED Encapsulation | SMD 1415 | SMD1921 | SMD1010 | SMD1212 | SMD 2020 | SMD1515 | |
| Pixel Pitch | 2.976 mm | 3.91 mm | 1.562 mm | 1.953 mm | 2.5 mm | 2.604 mm | |
| Module Resolution | 84 x 84 | 64 x 128 | 160 x 160 | 128 x 128 | 100 x 100 | 96 x 96 | |
| Pixel Synthesis | 1R1G1B(3 in1) | 1R1G1B(3 in1) | 1R1G1B(3 in1) | 1R1G1B(3 in1) | 1R1G1B(3 in1) | 1R1G1B(3 in1) | |
| Pixel Density | 112896/m² | 65536dots/m² | 409600dots/m² | 262144dots/m² | 160000/m² | 147456dots/m² | |
| Scan Mode | 1/14 scan | 1/11 Scan 1/16 Scan | 1/23 Scan | 1/16 Scan 1/32 Scan | 1/34 scan | 1/16 Scan | |
| Refresh Rate | >3840HZ | >3840HZ | >3840HZ | ≥7680HZ>3840HZ | 3,840 HZ | >7680HZ | |
| Gray Level | ≥16Bit | 13-16Bit | ≥16Bit | >16Bit | ≥16Bit | ≥16Bit | |
| Module Size | 250mm(W)*500mm(H) | 250mm(W)*500mm(H) | 250mm(W)*500mm(H) | 250mm(W)*500mm(H) | 250mm(W)*500mm(H) | 250mm(W)*500mm(H) | |
| Brightness | 5,000 nits | ≥6000nits ≥5000 nits | ≥1000-1300 nits | ≥1200-2000 nits | 5000 nits | ≥1200-1800nits | |
| Viewing Angle | ≥140° | ≥140° | ≥140° | ≥140° | ≥140° | ≥140° | |
| Best Viewing Distance | >2.9 m | >3.9 m | >1.5 m | >2.0 m | >2.5 m | >2.6 m | |
| Power Consumption(W/m2) | <750 | <650 | <650 | ≤650 | <450 | <650 | |
| Power Comsumption(W/m2) | 150 | 200 | 200 | 200 | 250 | 200 | |
| MTBF | >50000H | >50000H | >50000H | >50000H | >50000H | >50000H | |
| Working Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | |
| Level of Protection | IP65 | IP65 | IP40 | IP40 | IP40 | IP40 |
